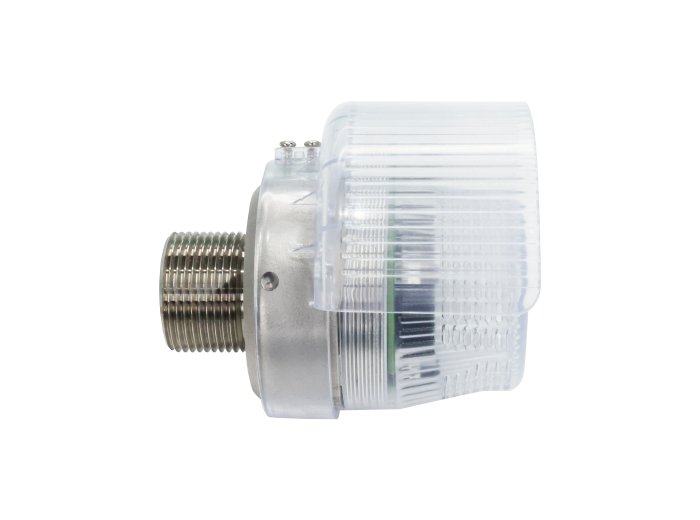

G001A

Audible and Visual Alarm

Examples of Gas Detection：

Depend on gas detector

Click for the full list of detectable gases.

Certifications

Technical Parameter

Technical Specifications	Parameter Details
Power Supply	25VDC
Current	≤40mA
Power Consumption	≤1W
Light Color	Red (optional: yellow, blue, green, or dual colors)
Alarm Sound Level	≥95dB@30cm
Alarm Tone	Dynamic changes
Explosion Protection Rating	Ex db ib lIC T6 Gb/ Ex ib tb lllC T80°C Db
Ingress Protection (IP) Rating	IP66/IP67
Relative Humidity	0～99% RH/No condensation
Dimensions	φ76.9×73.8mm(WxHxD)
Housing Material	Base material: Aluminum alloy/SS304/SS316 (optional)
Lens Material	antistatic PC
Lens Color	transparent

Product Features

– Integrated with point-type gas detectors

– Control the detector to emit audio-visual alarms through its output signal.

– High-pitched alarm sound and high-intensity alarm light with low power consumption

– Metal base and impact-resistant lampshade

– High-brightness LED light source with long service life

– Explosion-proof structure with high protection rating

– Compact in size, simple in structure, and easy to install

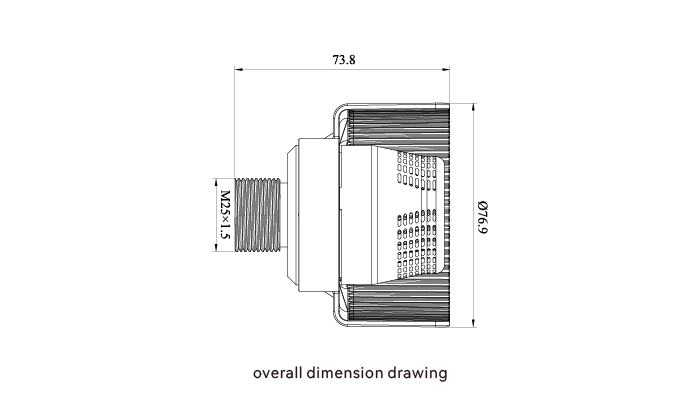

Structure & Dimension Diagram

Detectable Gases

Depend on gas detector

Paid Components

Video

Nuoan Team Building | Inside Our Industrial Gas Detection Team

Nuoan Gas Detection Laboratory | Precision Testing & Quality Assurance

Gas Detector Manufacturing | Nuoan Factory Production & Assembly Line

Get in Touch

We will provide you with the most professional solution.

Address

301, 1401, 1501, 1601, Building C1, No. 459, Qiaokai Road, Fenghuang Community, Fenghuang Street, Guangming District, Shenzhen, China (518107)

Related Products

The products include gas sensors, gas detectors, gas alarm controllers and monitoring systems, gas analysis and pre-treatment systems，explosion-proof audio-visual alarm, flame detectors, and industrial HSE IoT.

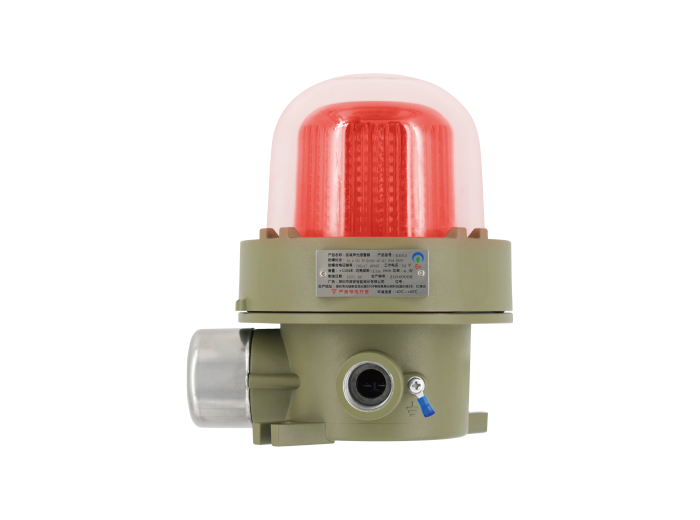

G003

Learn More >

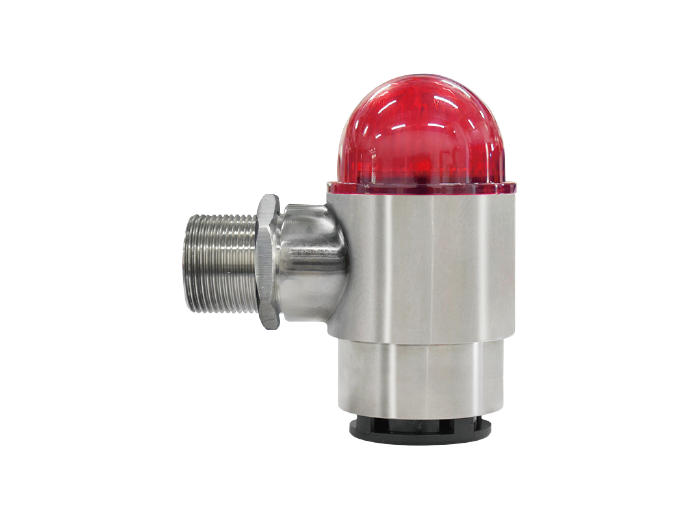

G001
