Certifications

Technical Parameter

Technical SpecificationsParameter Details
Spectral Range3.8um,4.3um,4.4um,5.0um
Detection PrincipleInfrared pyroelectric
SensitivityLevel I, II, III, IV (default level II, highest level IV)
Explosion Protection RatingEx db IIC T6 Gb/Ex tb IIIC T80℃ Db
Ingress Protection (IP) RatingIP67
Operating Voltage24VDC(18~30VDC)
Operating Current≤35mA
Output SignalPassive contacts of relays
Mounting MethodWall mounted or lifting
Response Time<30S
Detection Range / Detection Distance50 meters, 0.3M * 0.3M n-hexane fire
Field of View (FOV)90 °, 100% full cone field of view, axis ± 45 °
 Cable InterfaceStandard configuration with two NPT3/4 interfaces
Ambient Temperature-40℃~+70℃
Relative Humidity0-95% RH/no condensation
Enclosure / HousingPowder-Coated Aluminum Alloy / Stainless Steel
Dimensions217.5mm*120mm*175.5mm (including fixed brackets)
Weight2200g(Aluminum alloy )/4200g(SS316)

Product Features

– Advanced four infrared sensing technology, 1-channel detector, 3-channel reference
– High performance microprocessors and advanced numerical algorithm models
– Effectively suppress interference such as sunlight, lightning, welding, artificial light sources, environment (human, etc.), thermal radiation, electromagnetic interference, mechanical vibration, etc
– Optical non-contact detection, adjustable sensitivity on site, rich electrical interfaces for easy configuration.
– Waterproof and explosion-proof design with strong environmental adaptability

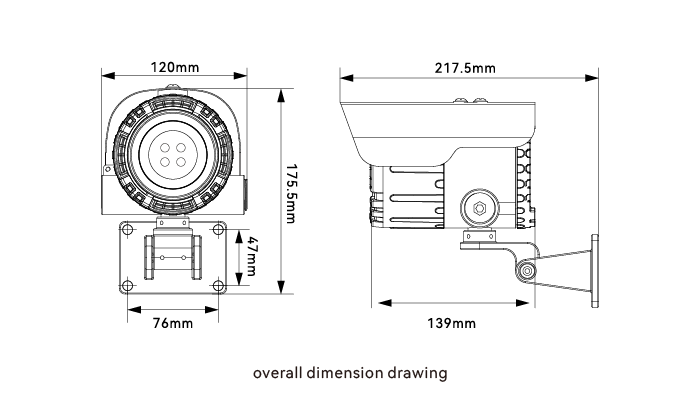

Structure & Dimension Diagram
