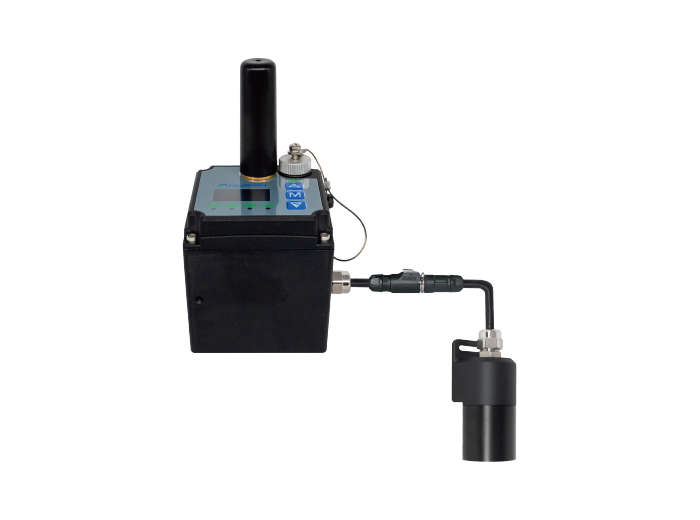

SNE320

Wireless Gas Detector

Examples of Gas Detection：

Methane
Ethane
Ethylene
Ethanol
Propylene / Propene

Ethylene oxide
Hydrogen
Arbon monoxide
Hydrogen sulfide
etc.

Click for the full list of detectable gases.

Certifications

Technical Parameter

Technical Specifications	Parameter Details
Target Gas	Combustible gas, oxygen, toxic and hazardous gases
Detection Principle	Infrared, electrochemical
Sampling Method	Diffusion type
Display Mode	LCD show
Alarm Mode	LED indicator, remote alarm
Power Supply	DC 3.7V/ 7000mAh
Charging Voltage	6V
Charging Time	17hours
Explosion Protection Rating	Ex db ib ⅡC T4 Gb
Battery Life	1year
Output Signal	NB-IoT wireless IoT, MQTT communication
Ambient Temperature	-25℃~55℃
Relative Humidity	95%Rh ( No condensation)
Sensor Lifetime	1-5 years ( Depending on different sensors)
Ingress Protection (IP) Rating	IP66
Dimensions	Transmitter: (80×75×143) mm Probe: (33×31.5×70.5) mm
Weight	1000g

Product Features

– Ultra-low power consumption design, long battery life

– Plug-in intelligent probe, easy replacement

– NB-IoT wireless IoT, MQTT communication

– Split-type design, sensor fixed-point precise monitoring

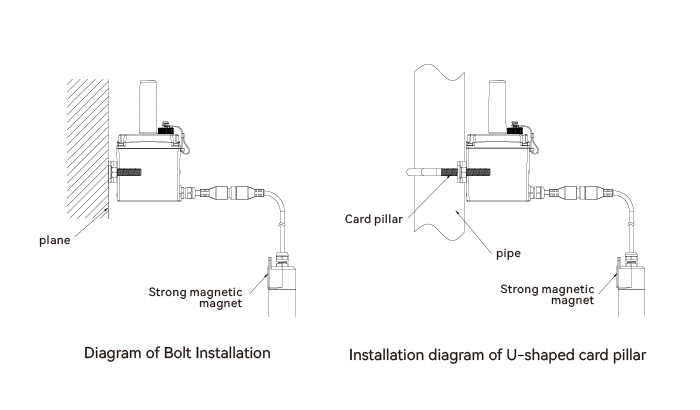

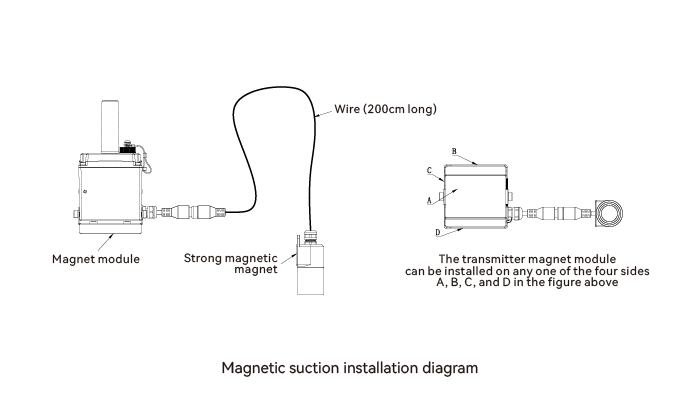

– Multiple installation methods: magnetic suction, bolt, U-type clamp, etc.

Structure & Dimension Diagram

Detectable Gases

Gas Name	CAS	Chemical Formula	Detection Range	Detection Accuracy	Response Time	V%
Methane	74-82-8	CH₄	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	5.00
Propane	74-98-6	C₃H₈	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	2.10
Isobutane	75-28-5	C₄H₁₀-IBT	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.80
Ethane	74-84-0	C₂H₆	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	3.00
Ethylene	74-85-1	C₂H₄	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	2.70

Other gases available upon request. Please call for details.

Gas Name	CAS	Chemical Formula	Detection Range	Detection Accuracy	Response Time
Arbon monoxide	630-08-0	CO	0-50/100/1000/2000ppm	0.1/1ppm	T90≤30s
Hydrogen sulfide	7683-06-4	H₂S	0-20/50/100/150ppm	0.1/1ppm	T90≤30s
Sulfur dioxide	7446-09-5	SO₂	0-5/10/20/100ppm	0.1/1ppm	T90≤30s
Chlorine	7782-50-5	Cl₂	0-5/10/20ppm	0.1ppm	T90≤60s
Ammonia	7664-41-7	NH₃	0-50/80/100ppm	0.1/1ppm	T90≤60s
Hydrogen chloride	7647-01-0	HCl	0-10/20/30ppm	0.1ppm	T90≤60s
Oxygen	7782-44-7	O₂	0-25/30/100%VOL	0.1%VOL	T90≤30s
Hydrogen cyanide	74-90-8	HCN	0-10/15/20ppm	0.1ppm	T90≤60s
Hydrogen	1333-74-0	H₂	0-1000/2000/9999ppm	1ppm	T90≤90s
Nitrogen dioxide	10102-44-0	NO₂	0-10/15/20ppm	0.1ppm	T90≤60s
Phosphine	7803-51-2	PH₃	0-1/5/20ppm	0.01/0.1ppm	T90≤60s
Silane	7803-62-5	SiH₄	0-50/100ppm	0.1/1ppm	T90≤90s
Hydrogen fluoride	7664-39-3	HF	0-10ppm	0.01ppm	T90≤60s
Ethylene oxide	75-21-8	CH₂CH₂O	0-20/50/100ppm	0.1/1ppm	T90≤90s
Nitric oxide	10102-43-9	NO	0-10/20/50ppm	0.1ppm	T90≤60s
Acrylonitrile	107-13-1	C₃H₃N	0-50/80ppm	0.1ppm	T90≤90s
Diborane	19287-45-7	B₂H₆	0-1ppm	0.01ppm	T90≤60s
Carbon disulfide	75-15-0	CS2	0-10/20ppm	0.1ppm	T90≤60s
Chlorine dioxide	10049-04-4	ClO₂	0-1/5/10ppm	0.01ppm	T90≤90s
Formaldehyde	50-00-0	CH₂O	0-10ppm	0.01ppm	T90≤30s
Vinyl chloride	75-01-4	CH₂CHCl	0-20/50/100ppm	0.1/1ppm	T90≤60s
Ozone	10028-15-6	O₃	0-1ppm	0.01ppm	T90≤60s
Bromine	7726-95-6	Br₂	0-10ppm	0.01ppm	T90≤60s
