SNE360

Portable Multi Gas Detector

Examples of Gas Detection：

Hydrogen chloride
Oxygen
Hydrogen cyanide
Hydrogen
Arbon monoxide

VOCs
Propane
Sulfur dioxide
Chlorine
etc.

Click for the full list of detectable gases.

Certifications

Technical Parameter

Technical Specifications	Parameter Details
Detection principle	Toxic gas, oxygen… Electrochemical Volatile organic compounds… Photoionization

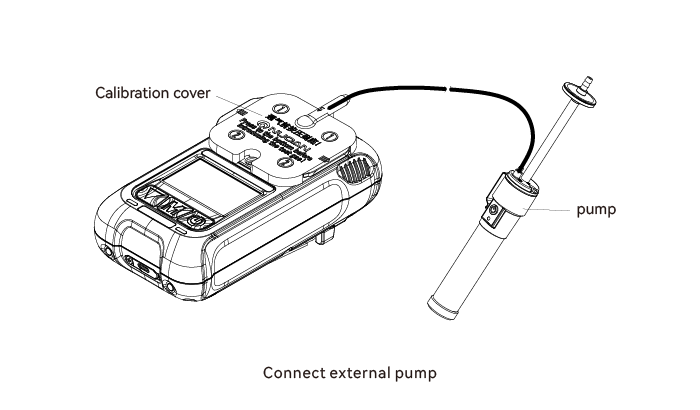

Detection method	Dispersed or external pump suction (optional)
Accuracy	＜±3%F.S.
Display method	Gas Concentration and Working State of LCD Backlight Liquid Crystal Display
Alarm method	Acoustic and visual alarm (volume 90dB@30cm), vibration alarm
source	Rechargeable lithium battery, 2500mAh
Charging duration	≤6 hours
Continuous working hours	≥12 hours (non-alarm working state)
ambient temperature	-20℃~55℃
relative humidity	15%～95% RH/No condensation
Explosion proof signs	Ex ib lIC T4 Gb
Protection level	IP66
External dimensions	67.612850.7mm (WxHxD)
weight	270g

Product Features

– Simultaneous detection of 1~6 gases, including combustible, oxygen and various toxic gases

– Large screen LCD display mode supports single-screen display of all monitored gas concentrations, or large-font display of single gas concentration

– 360-degree LED optical alarm, 90 dB audible alarm

– Soft rubber-coated housing design, rugged and durable, protection rating up to IP66

– Rechargeable lithium battery, continuous operation over 12 hours (non-alarm status)

– Full functional self-test of sensors, battery, audible and visual alarms, and circuit integrity upon startup

– Up to 2 GB detection history data storage, uploadable to PC for analysis

– Detector equipped with LED lighting function

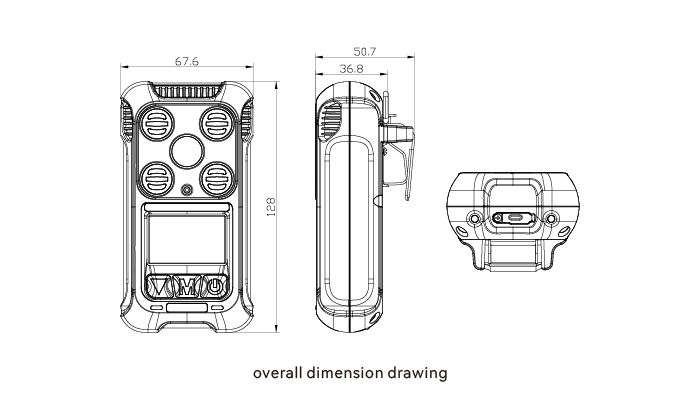

Structure & Dimension Diagram

Detectable Gases

Gas Name	CAS	Chemical Formula	Detection Range	Detection Accuracy	Response Time
Arbon monoxide	630-08-0	CO	0-50/100/1000/2000ppm	0.1/1ppm	T90≤30s
Hydrogen sulfide	7683-06-4	H₂S	0-20/50/100/150ppm	0.1/1ppm	T90≤30s
Sulfur dioxide	7446-09-5	SO₂	0-5/10/20/100ppm	0.1/1ppm	T90≤30s
Chlorine	7782-50-5	Cl₂	0-5/10/20ppm	0.1ppm	T90≤60s
Ammonia	7664-41-7	NH₃	0-50/80/100ppm	0.1/1ppm	T90≤60s
Hydrogen chloride	7647-01-0	HCl	0-10/20/30ppm	0.1ppm	T90≤60s
Oxygen	7782-44-7	O₂	0-25/30/100%VOL	0.1%VOL	T90≤30s
Hydrogen cyanide	74-90-8	HCN	0-10/15/20ppm	0.1ppm	T90≤60s
Hydrogen	1333-74-0	H₂	0-1000/2000/9999ppm	1ppm	T90≤90s
Nitrogen dioxide	10102-44-0	NO₂	0-10/15/20ppm	0.1ppm	T90≤60s
Phosphine	7803-51-2	PH₃	0-1/5/20ppm	0.01/0.1ppm	T90≤60s
Silane	7803-62-5	SiH₄	0-50/100ppm	0.1/1ppm	T90≤90s
Hydrogen fluoride	7664-39-3	HF	0-10ppm	0.01ppm	T90≤60s
Ethylene oxide	75-21-8	CH₂CH₂O	0-20/50/100ppm	0.1/1ppm	T90≤90s
Nitric oxide	10102-43-9	NO	0-10/20/50ppm	0.1ppm	T90≤60s
Acrylonitrile	107-13-1	C₃H₃N	0-50/80ppm	0.1ppm	T90≤90s
Diborane	19287-45-7	B₂H₆	0-1ppm	0.01ppm	T90≤60s
Carbon disulfide	75-15-0	CS2	0-10/20ppm	0.1ppm	T90≤60s
Chlorine dioxide	10049-04-4	ClO₂	0-1/5/10ppm	0.01ppm	T90≤90s
Formaldehyde	50-00-0	CH₂O	0-10ppm	0.01ppm	T90≤30s
Vinyl chloride	75-01-4	CH₂CHCl	0-20/50/100ppm	0.1/1ppm	T90≤60s
Ozone	10028-15-6	O₃	0-1ppm	0.01ppm	T90≤60s
Bromine	7726-95-6	Br₂	0-10ppm	0.01ppm	T90≤60s
Carbon dioxide	124-38-9	CO₂	0-5000ppm 0-1%VOL，0-5%VOL	1ppm/0.05%VOL	T90≤60s

Gas Name	CAS	Chemical Formula	Detection Range	Detection Accuracy	Response Time
Benzene	71-43-2 -1	C₆H₆	(0~3/5/10/100)μmol/mol	0.01/0.1/1μmol/mol	T90≤10s(Lsobutylene)
Toluene	108-88-3 -2	C₇H₈	(0~10/20/100)μmol/mol	0.01/0.1/1μmol/mol	T90≤10s(Lsobutylene)
Ethylbenzene	100-41-4 -3	C₈H₁₀	(0~20/40/70)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Acetone	67-64-1 -4	C₃H₆O	(0~100/200/300)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Phenol	108-95-2 -5	C₆H₆O	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Ethyl acetate	141-78-6 -6	C₄H₈O₂	(0~50/100/150)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Styrene	100-42-5 -7	C₈H₈	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Aminomethane (Methylamine)	74-89-5 -8	CH₅N	(0~10/15/20)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Aniline	62-53-3 -9	C₆H₇N	(0~3/5/10)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Xylene	1330-20-7 -10	C₈H₁₀	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Butadiene	106-99-0	C₄H₆	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Carbon disulfide	75-15-0	CS₂	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Biphenyl	92-52-4	C₁₂H₁₀	(0~5/10/20)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Chlorobenzene	108-90-7	C₆H₅Cl	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Hydrazine	302-01-2	N₂H₄	(0~15/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Vinyl chloride	1975/1/4	C₂H₃Cl	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Methyl mercaptan	74-93-1	CH₃SH	(0~10/15/20)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Nitrobenzene	98-95-3	C₆H₅NO₂	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Toluene diisocyanate	26471-62-5	TDI	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Nonane	111-84-2	C₉H₂₀	(0~100/200/300)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Ethylcyclohexane	1678-91-7	C₈H₁₆	(0~100/200/300)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Butanol	71-36-3	C₄H₁₀O	(0~30/50/100)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)
Pentanol	71-41-0	C₅H₁₂O	(0~50/80)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)
Isobutanol	78-83-1	C₄H₁₀O	(0~50/100)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)
Cyclohexanone	108-94-1	C₆H₁₀O	(0~10/20/35)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Jet fuel	8008-20-6	\	(0~100/200)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Kerosene	8008-20-6	\	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Diesel fuel	68334-30-5	\	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Gasoline	86290-81-5	\	(0~50/100)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)

Gas Name	CAS	Chemical Formula	Detection Range	Detection Accuracy	Response Time
Methane	74-82-8	CH₄	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Ethane	74-84-0	C₂H₆	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Ethylene	74-85-1	C₂H₄	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Ethanol	64-17-5	C₂H₆O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Propylene / Propene	75-19-4	C₃H₆	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Propane	74-98-6	C₃H₈	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Acetone	67-64-1	(CH₃)₂CO	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Hydrogen	1333-74-0	H₂	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
1,3-Butadiene	106-99-0	C₄H₆	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Isobutane	75-28-5	C₄H₁₀-IBT	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
n-Butane	106-97-8	C₄H₁₀-NBT	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
n-Pentane	109-66-0	C₅H₁₂	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
n-Hexane	110-54-3	C₆H₁₄	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
n-Heptane	142-82-5	C₇H₁₆	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Ethanol	64-17-5	C₂H₆O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Acetaldehyde	75-07-0	C₂H₄O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Methanol	67-56-1	CH₄O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Benzaldehyde	100-52-7	C₆H₅CH	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Isopropyl alcohol	67-63-0	C₃H₈O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Butanone	78-93-3	C₄H₈O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Xylene	1330-20-7	C₆H₄(CH₃)₂	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Ethylbenzene	100-41-4	CH₃CH₂C₆H₅	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
Ethanol	64-17-5	C₂H₆O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
n-Octane	111-65-9	C₈H₁₈	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
n-Nonane	111-84-2	C₉H₂₀	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s
