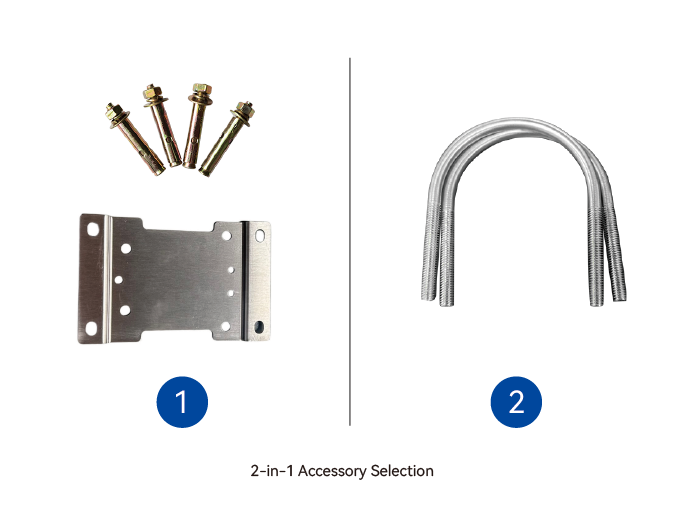

Standard Components

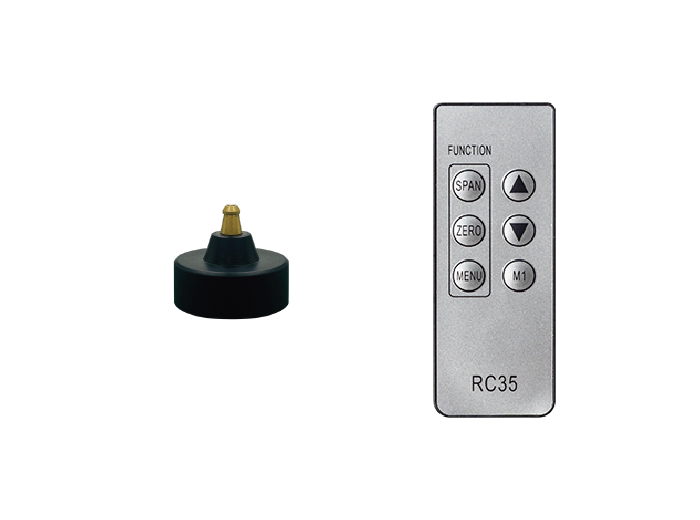

Batch Components

SNE600C

Fixed-type Catalytic Combustible Gas Detector

Examples of Gas Detection：

Methane
Ethane
Ethylene
Ethanol
Propylene / Propene

Propane
Acetone
Acetaldehyde
Isobutane
etc.

Click for the full list of detectable gases.

Simplified Manual

Download

Certifications

Technical Parameter

Technical Specifications	Parameter Details
Detection Range / Measuring Range	0%LEL~100%LEL
Detection Principle	catalytic combustion (anti-poisoning)
Detection Method	diffuse type
Accuracy	＜±2%F.S.
Resolution	1%LEL
Repeatability	＜2%
Response Time	T90≤15s
Display Mode	Digital LCD Display and Indicator
Alarm Mode	LED optical alarm, optional explosion-proof audible and visual alarm (optional purchase)
Adjustment Method	Infrared remote control
Power Supply	24V DC（15～32V DC）
Power Consumption	≤3W (≤5W with explosion-proof audible and visual alarm)
Output Signal	4~20mA (three-wire) 4~20mA + HART (optional) RS485 Modbus (four-wire) Three relay switch outputs (2A 30V DC) 24V DC output (for driving audible and visual alarm) 4G/5G/NB-IoT/LoRa wireless communication (optional)
Transmission Cable	≤1000m，3(4)×1.5mm²；≤1500m，3(4)×2.5mm²
Electrical Interface	Three interfaces, NPT3/4 “(F), NPT1/2” (F), M25 * 1.5
Ambient Temperature	-40℃～+70℃
Relative Humidity	0～99% RH/No condensation
Sensor Lifetime	≥5years
Explosion Protection Rating	Ex db lIC T6 Gb Ex tb IIIC T80°C Db
Ingress Protection (IP) Rating	IP66
Enclosure Material	Aluminum alloy
Dimensions	12019589mm (WxHxD)
Weight	1700g（ Aluminum alloy ）

Product Features

– Plug-in intelligent sensor module, easy replacement

– Digital LED display, wide operating temperature range, long service life

– Auto-zero calibration, automatic fault recognition and automatic error indication

– Multiple signal outputs, multiple wiring connections

– Dual explosion-proof certification for explosive gas atmospheres and combustible dust atmospheres

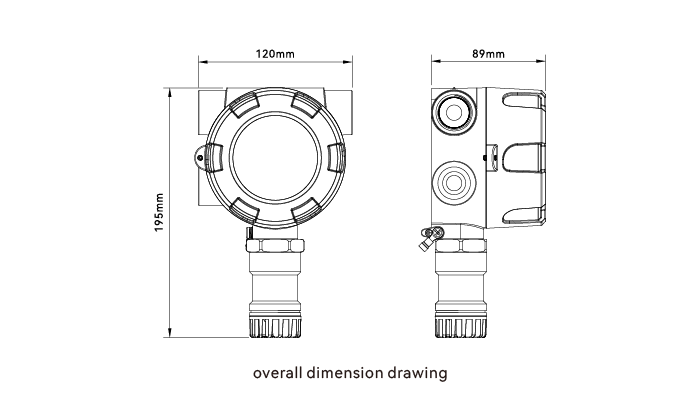

Structure & Dimension Diagram

Detectable Gases

Gas Name	CAS	Chemical Formula	Detection Range	Detection Accuracy	Response Time	V%
Methane	74-82-8	CH₄	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	5.00
Ethane	74-84-0	C₂H₆	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	3.00
Ethylene	74-85-1	C₂H₄	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	2.70
Ethanol	64-17-5	C₂H₆O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	3.10
Propylene / Propene	75-19-4	C₃H₆	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	2.00
Propane	74-98-6	C₃H₈	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	2.10
Acetone	67-64-1	(CH₃)₂CO	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	2.50
Hydrogen	1333-74-0	H₂	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	4.00
1,3-Butadiene	106-99-0	C₄H₆	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.10
Isobutane	75-28-5	C₄H₁₀-IBT	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.80
n-Butane	106-97-8	C₄H₁₀-NBT	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.90
n-Pentane	109-66-0	C₅H₁₂	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.40
n-Hexane	110-54-3	C₆H₁₄	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.10
n-Heptane	142-82-5	C₇H₁₆	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.00
Ethanol	64-17-5	C₂H₆O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	3.40
Acetaldehyde	75-07-0	C₂H₄O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	3.00
Methanol	67-56-1	CH₄O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	5.50
Benzaldehyde	100-52-7	C₆H₅CH	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.10
Isopropyl alcohol	67-63-0	C₃H₈O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	2.00
Butanone	78-93-3	C₄H₈O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.80
Xylene	1330-20-7	C₆H₄(CH₃)₂	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.10
Ethylbenzene	100-41-4	CH₃CH₂C₆H₅	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.00
Ethanol	64-17-5	C₂H₆O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.00
n-Octane	111-65-9	C₈H₁₈	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	0.80
n-Nonane	111-84-2	C₉H₂₀	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	0.80

Paid Components

Sunshade
