SNE808

Gas Alarm Controller

Examples of Gas Detection：

Depends on gas detector

Click for the full list of detectable gases.

Certifications

Technical Parameter

Technical Specifications	Parameter Details
Signal input	4-20mA or RS485 signal
range	According to the detection range of the connected gas detector, each path can be set separately
Wireless Communication	Wireless communication transmission (optional) including 4G/5G/NB-IoT/LORA
Display method	LCD/LED displays gas concentration, LCD displays detector installation position, and LED lights indicate working status
Alarm method	Two stage sound and light alarm, sound ≥ 90dB@30cm
Output current	Each channel provides 24-28VDC
Connecting to the detector	Three wire system
Working power supply	220VAC 50Hz
Backup power supply	24VDC/33AH可充电电池（选配）
power dissipation	≤5W/Road
temperature range	-20℃～+60℃
relative humidity	0-99% RH/no condensation
Installation method	Cabinet and wall mounted

Product Features

– Advanced microprocessor technology and communication technology, stable and reliable, with high accuracy.

– Wide screen dot matrix LCD and Chinese menu.

– Modular structure, IO module can be expanded arbitrarily, and a single machine can connect up to 54 detectors, which can display the readings and positions of each detector.

– Strong universality, receiving 4-20mA current signals or RS485 bus inputs.

– Relay switch quantity and RS485 output.

– Two stage sound and light alarms, alarm points can be set.

– Detectors, circuit faults, and power supply undervoltage automatic alarms.

– The main and backup power supplies automatically switch, and the backup point automatically charges.

– Data storage, historical record query (can store 2GB or more)

– Easy to install, easy to operate, and good human-machine interface

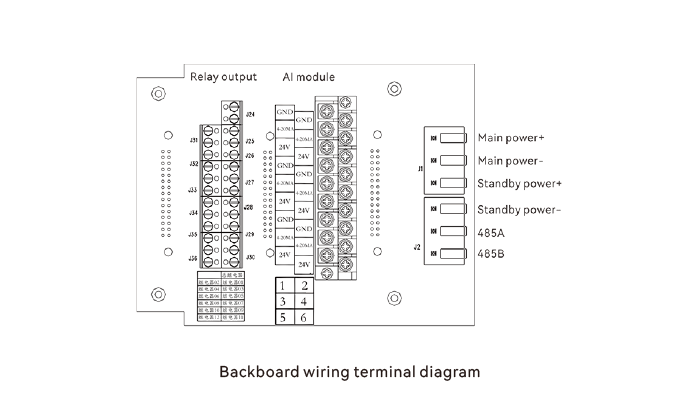

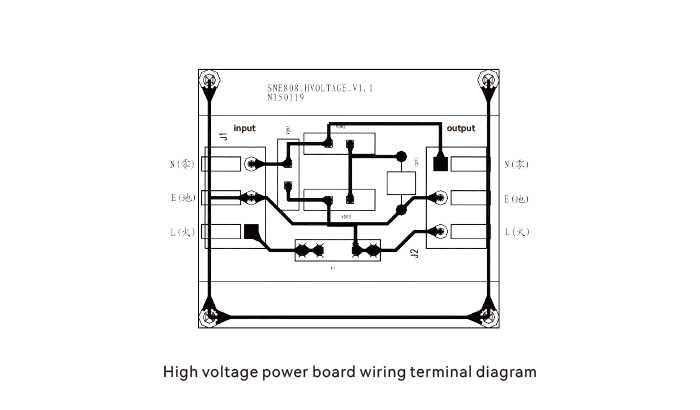

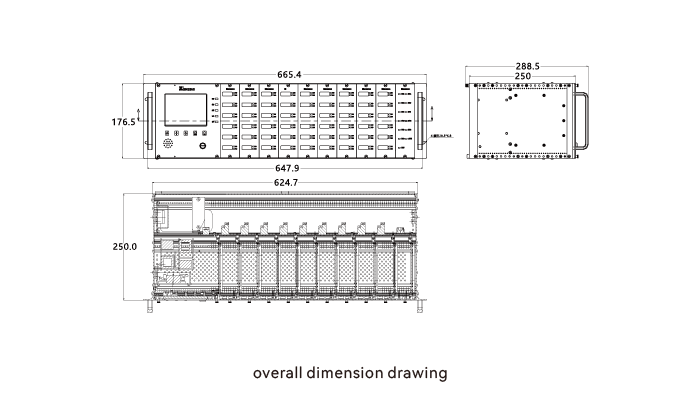

Structure & Dimension Diagram

Detectable Gases

Depends on gas detector

Gas Name	CAS	Chemical Formula	Detection Range	Resolution Ratio	Response Time
Benzene	71-43-2 -1	C₆H₆	(0~3/5/10/100)μmol/mol	0.01/0.1/1μmol/mol	T90≤10s(Lsobutylene)
Toluene	108-88-3 -2	C₇H₈	(0~10/20/100)μmol/mol	0.01/0.1/1μmol/mol	T90≤10s(Lsobutylene)
Ethylbenzene	100-41-4 -3	C₈H₁₀	(0~20/40/70)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Acetone	67-64-1 -4	C₃H₆O	(0~100/200/300)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Phenol	108-95-2 -5	C₆H₆O	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Ethyl acetate	141-78-6 -6	C₄H₈O₂	(0~50/100/150)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Styrene	100-42-5 -7	C₈H₈	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Aminomethane (Methylamine)	74-89-5 -8	CH₅N	(0~10/15/20)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Aniline	62-53-3 -9	C₆H₇N	(0~3/5/10)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Xylene	1330-20-7 -10	C₈H₁₀	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Butadiene	106-99-0	C₄H₆	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Carbon disulfide	75-15-0	CS₂	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Biphenyl	92-52-4	C₁₂H₁₀	(0~5/10/20)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Chlorobenzene	108-90-7	C₆H₅Cl	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Hydrazine	302-01-2	N₂H₄	(0~15/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Vinyl chloride	1975/1/4	C₂H₃Cl	(0~10/20/30)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Methyl mercaptan	74-93-1	CH₃SH	(0~10/15/20)μmol/mol	0.01μmol/mol	T90≤10s(Lsobutylene)
Nitrobenzene	98-95-3	C₆H₅NO₂	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Toluene diisocyanate	26471-62-5	TDI	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Nonane	111-84-2	C₉H₂₀	(0~100/200/300)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Ethylcyclohexane	1678-91-7	C₈H₁₆	(0~100/200/300)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Butanol	71-36-3	C₄H₁₀O	(0~30/50/100)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)
Pentanol	71-41-0	C₅H₁₂O	(0~50/80)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)
Isobutanol	78-83-1	C₄H₁₀O	(0~50/100)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)
Cyclohexanone	108-94-1	C₆H₁₀O	(0~10/20/35)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Jet fuel	8008-20-6	\	(0~100/200)μmol/mol	1μmol/mol	T90≤10s(Lsobutylene)
Kerosene	8008-20-6	\	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Diesel fuel	68334-30-5	\	(0~10/20/50)μmol/mol	0.01/0.1μmol/mol	T90≤10s(Lsobutylene)
Gasoline	86290-81-5	\	(0~50/100)μmol/mol	0.1μmol/mol	T90≤10s(Lsobutylene)

Gas Name	CAS	Chemical Formula	Detection Range	Detection Accuracy	Response Time
Arbon monoxide	630-08-0	CO	0-50/100/1000/2000ppm	0.1/1ppm	T90≤30s
Hydrogen sulfide	7683-06-4	H₂S	0-20/50/100/150ppm	0.1/1ppm	T90≤30s
Sulfur dioxide	7446-09-5	SO₂	0-5/10/20/100ppm	0.1/1ppm	T90≤30s
Chlorine	7782-50-5	Cl₂	0-5/10/20ppm	0.1ppm	T90≤60s
Ammonia	7664-41-7	NH₃	0-50/80/100ppm	0.1/1ppm	T90≤60s
Hydrogen chloride	7647-01-0	HCl	0-10/20/30ppm	0.1ppm	T90≤60s
Oxygen	7782-44-7	O₂	0-25/30/100%VOL	0.1%VOL	T90≤30s
Hydrogen cyanide	74-90-8	HCN	0-10/15/20ppm	0.1ppm	T90≤60s
Hydrogen	1333-74-0	H₂	0-1000/2000/9999ppm	1ppm	T90≤90s
Nitrogen dioxide	10102-44-0	NO₂	0-10/15/20ppm	0.1ppm	T90≤60s
Phosphine	7803-51-2	PH₃	0-1/5/20ppm	0.01/0.1ppm	T90≤60s
Silane	7803-62-5	SiH₄	0-50/100ppm	0.1/1ppm	T90≤90s
Hydrogen fluoride	7664-39-3	HF	0-10ppm	0.01ppm	T90≤60s
Ethylene oxide	75-21-8	CH₂CH₂O	0-20/50/100ppm	0.1/1ppm	T90≤90s
Nitric oxide	10102-43-9	NO	0-10/20/50ppm	0.1ppm	T90≤60s
Acrylonitrile	107-13-1	C₃H₃N	0-50/80ppm	0.1ppm	T90≤90s
Diborane	19287-45-7	B₂H₆	0-1ppm	0.01ppm	T90≤60s
Carbon disulfide	75-15-0	CS2	0-10/20ppm	0.1ppm	T90≤60s
Chlorine dioxide	10049-04-4	ClO₂	0-1/5/10ppm	0.01ppm	T90≤90s
Formaldehyde	50-00-0	CH₂O	0-10ppm	0.01ppm	T90≤30s
Vinyl chloride	75-01-4	CH₂CHCl	0-20/50/100ppm	0.1/1ppm	T90≤60s
Ozone	10028-15-6	O₃	0-1ppm	0.01ppm	T90≤60s
Bromine	7726-95-6	Br₂	0-10ppm	0.01ppm	T90≤60s
Carbon dioxide	124-38-9	CO₂	0-5000ppm 0-1%VOL，0-5%VOL	1ppm/0.05%VOL	T90≤60s

Gas Name	CAS	Chemical Formula	Detection Range	Detection Accuracy	响应时间(Response Time)	爆炸下限浓度(V%)
Methane	74-82-8	CH₄	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	5.00
Ethane	74-84-0	C₂H₆	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	3.00
Ethylene	74-85-1	C₂H₄	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	2.70
Ethanol	64-17-5	C₂H₆O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	3.10
Propylene / Propene	75-19-4	C₃H₆	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	2.00
Propane	74-98-6	C₃H₈	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	2.10
Acetone	67-64-1	(CH₃)₂CO	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	2.50
Hydrogen	1333-74-0	H₂	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	4.00
1,3-Butadiene	106-99-0	C₄H₆	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.10
Isobutane	75-28-5	C₄H₁₀-IBT	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.80
n-Butane	106-97-8	C₄H₁₀-NBT	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.90
n-Pentane	109-66-0	C₅H₁₂	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.40
n-Hexane	110-54-3	C₆H₁₄	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.10
n-Heptane	142-82-5	C₇H₁₆	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.00
Ethanol	64-17-5	C₂H₆O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	3.40
Acetaldehyde	75-07-0	C₂H₄O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	3.00
Methanol	67-56-1	CH₄O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	5.50
Benzaldehyde	100-52-7	C₆H₅CH	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.10
Isopropyl alcohol	67-63-0	C₃H₈O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	2.00
Butanone	78-93-3	C₄H₈O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.80
Xylene	1330-20-7	C₆H₄(CH₃)₂	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.10
Ethylbenzene	100-41-4	CH₃CH₂C₆H₅	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.00
Ethanol	64-17-5	C₂H₆O	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	1.00
n-Octane	111-65-9	C₈H₁₈	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	0.80
n-Nonane	111-84-2	C₉H₂₀	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	0.80
