XTQ-TDLScan100

Laser Gas Detector

Examples of Gas Detection：

Methane

Click for the full list of detectable gases.

Certifications

Technical Parameter

Technical Specifications	Parameter Details
Detection principle	Laser absorption spectroscopy
Gas detection	CH4
Detection method	Detection laser safety: Class I laser, eye-safe
Detection scope	0~50000ppm·m
Resolving power	Detection limit: 50 ppm·m
Accuracy	Detection error: within ±10%
Detection distance	0~150m
Response time	<0.1s
Sensor lifespan	Electrical connection: integrated cable
Display method	Detector:Communication mode: RS-485 Communication rate: 9600 bps
Alarm method	Pan-tilt unit: Communication mode: RS-485 Communication rate: 9600 bps Address code: 1 (factory default)
Alarm value	Camera: Model: Hikvision iDS-2ZMN2507N(B) IP address: 192.168.1.XX (see body label for details) Subnet mask: 255.255.255.0
Adjustment method	Electrical interface: NPT3/4 internal thread
Source	Input voltage: 100V~240V AC, Rated power: 75W (220V AC)
Power dissipation	Detection laser power: ≤10 mW
Ambient temperature	Preset positions: 255
Relative humidity	Preset position accuracy: ≤0.1°
Output signal	Horizontal angle range: 360° continuous Vertical angle range: +90° ~ -90° Horizontal rotation speed: (0.1°~40°)/s smooth variable-speed rotation Vertical rotation speed: (0.1°~30°)/s smooth variable-speed rotation
Shell material	Standard: 304 stainless steel (optional 316L)

Product Features

– High integration: adopts integrated structural design, integrating gas detector, HD camera, and full-range variable-speed pan-tilt unit in one, with no external connecting cables between pan-tilt unit, detector, and camera

– Wide monitoring range: capable of 360° horizontal rotation and ±90° tilt rotation, achieving dead-angle-free monitoring

– Easy access: adopts standard communication protocols, enabling convenient communication with host computer, control systems, and auxiliary equipment

– Safe and reliable: adopts flameproof design, with wide voltage operating range and surge protection function

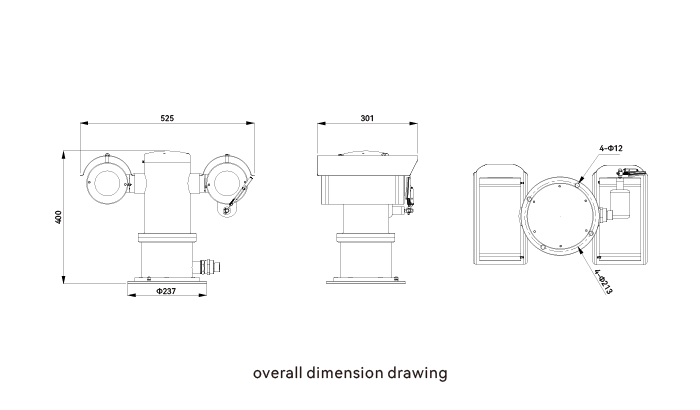

Structure & Dimension Diagram

Detectable Gases

Gas Name	CAS	Chemical Formula	Detection Range	Detection Accuracy	Response Time	爆炸下限浓度(V%)
Methane	74-82-8	CH₄	0-50%LEL，50%LEL~100%LEL，0~100%LEL	1%LEL	T90≤30s	5.00
