NAS-IR300 Methane and combustible hydrocarbons gases and steam

NAS-IR300

Gas Sensors

Examples of Gas Detection：

Click for the full list of detectable gases.

Certifications

Technical Parameter

Technical Specifications	Parameter Details
Detection gas	Methane and combustible hydrocarbons gases and steam
Detection principle	NDIR
Detection range	0%LEL-100%LEL
Detection method	Diffusion type
Response time	T90<30s (T90<6s in the case of rapid filling of the gas chamber)
measurement accuracy	±3% F.S.
Resolution ratio	1%LEL
Service life	8years
long-term stability	±3% LEL
Output signal	Digital signal/ analog signal
Supply voltage	3.2V~5.5V DC（建议3.3V DC）
Ambient temperature	-40℃ ～ 70℃
Relative humidity	0-95%RH/no condensation
Atmospheric Pressure	101kPa±20kpa
Connection method	plug-in type
Shell material	S316 stainless steel
Overall dimension	20×21.7mm（ΦxL）
Weight	18g
Application	Petrochemical industry, coal mining, natural gas exploration and storage, laboratory, gas station, catering industry

Product Features

Short optical path gas chamberl, wide detection range and good accuracy;
Dual-optical path detection , self-correcting optical path, high reliability, strong anti-interference ability;
Infrared light absorption principle, stable sensing performance and long service lifetime;
Multi-channel digital signal output, selectable hydrocarbon detection gas types, and customizable detection ranges;
No need for frequent calibration, small zero drift, high long-term stability;
Intelligent temperature compensation, -40 to +70℃, meets the accuracy requirements of national standards;
Resistant to gas poisoning such as silane, halogen elements, and hydrogen sulfide;
Normal use in anoxic environment;
Low power consumption and good durability

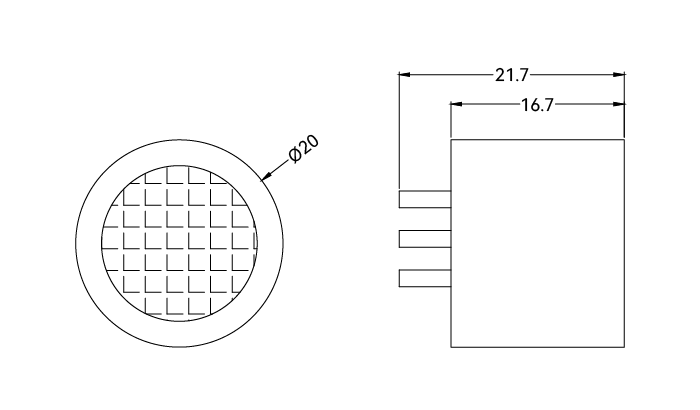

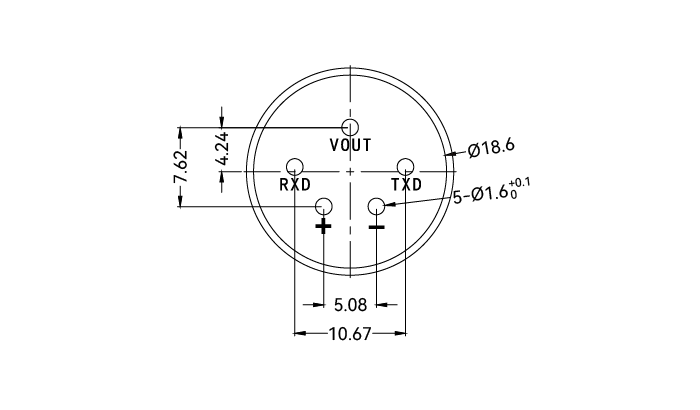

Structure & Dimension Diagram

Detectable Gases
