NAS-PID6V1HP

Gas Sensors

Examples of Gas Detection：

Click for the full list of detectable gases.

Certifications

Technical Parameter

Technical Specifications	Parameter Details
Gas Detected	Volatile organic compounds and vapors (ionization potential <10.6eV)
Detection Range	0~10 μmol/mol、0~100 μmol/mol、0~1000 μmol/mol、0~10000 μmol/mol
Detection Principle	PID（10.6eV）
Accuracy	≤±2%
Response Time	T90≤10s
Resolution	0.001 μmol/mol~2 μmol/mol(Depends on the measuring range)
Operating Pressure	800～1200mbar
Operating Voltage	3.2V~5.5V
Zero Voltage	20mV~120mV
Output Signal	0.02～2.0V (max 3.0V)
Sensor Life	3 years(excluding light source and ion chamber)
UV Light Source Life	8000 hours
Warranty	12 months
Operating Temperature	-40～55℃
Operating Humidity	0-99%RH/no condensation
Applications field	1、Petrochemical 2、Chemical industry 3、Pharmaceutical 4、Equipment manufacturing, new materials 5、Environmental monitoring 6、Anti-chemical and anti-terrorism

Product Features

High sensitivity
Wide range
Rapid response time
High stability
The ultraviolet lamp and the ion chamber can be replaced separately

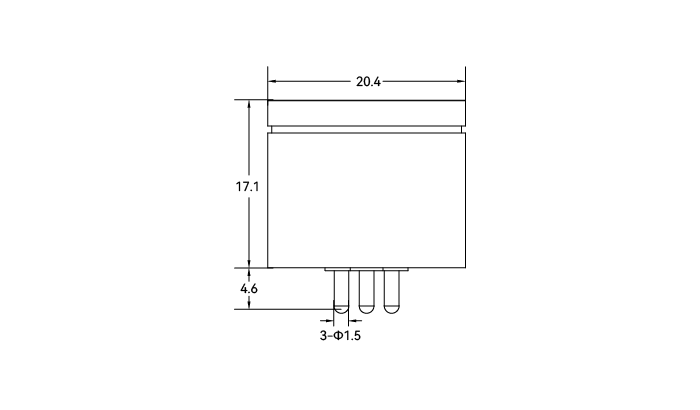

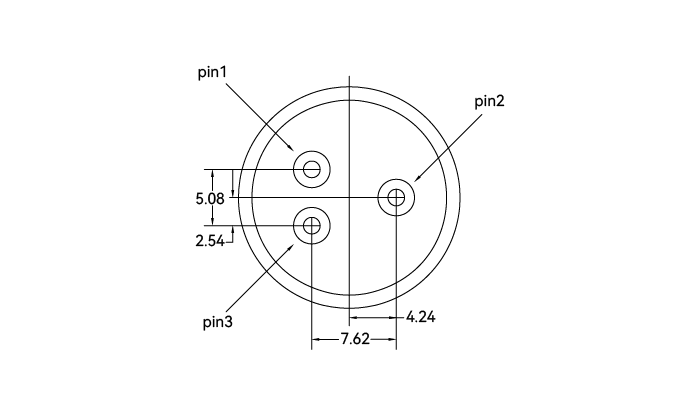

Structure & Dimension Diagram

Detectable Gases
