NAS-IR301

Gas Sensors

Examples of Gas Detection：

Click for the full list of detectable gases.

Certifications

Technical Parameter

Technical Specifications	Parameter Details
Detection gas	Methane and combustible hydrocarbons gases and steam
Detection principle	NDIR
Detection range	0%LEL-100%LEL
Detection method	Diffusion type
Response time	T90<30s (T90<6s in the case of rapid filling of the gas chamber)
measurement accuracy	±3% F.S.
Resolution ratio	1%LEL
Service life	≥10years
long-term stability	±3% LEL
Output signal	Digital signal/ analog signal
Supply voltage	3.3V～5.5V DC
Peak current	<70mA
Ambient temperature	-40℃ ～ 70℃
Relative humidity	0-95%RH/no condensation
Atmospheric Pressure	101kPa±20kpa
Shell material	S316 stainless steel
Overall dimension	20×21.7mm（ΦxL）
Weight	18g
Application	Petroleum exploration, petroleum storage and transportation, petroleum refining, gas pipeline, gas storage and transportation, coal mine

Product Features

Standard 4-series structure, small size, compact structure
Two signal output modes: digital and analog
Dual-wavelength, intelligent zero point and slope temperature compensation from -40 to 70℃
Strong gas selectivity, no cross interference
Good linearity, high stability and repeatability, small zero drift
Oxygen-independent and resistant to toxicity
Low power consumption and long lifespan

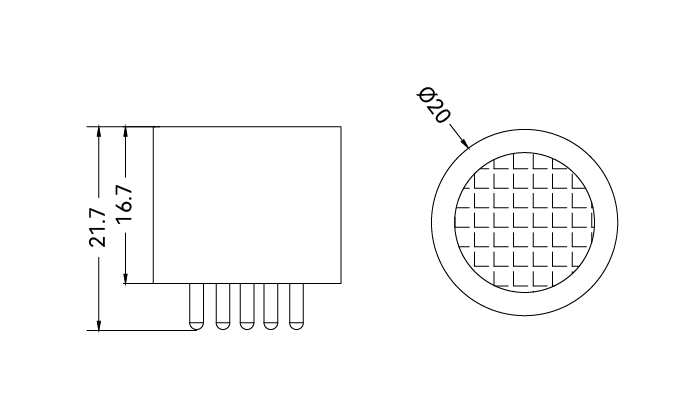

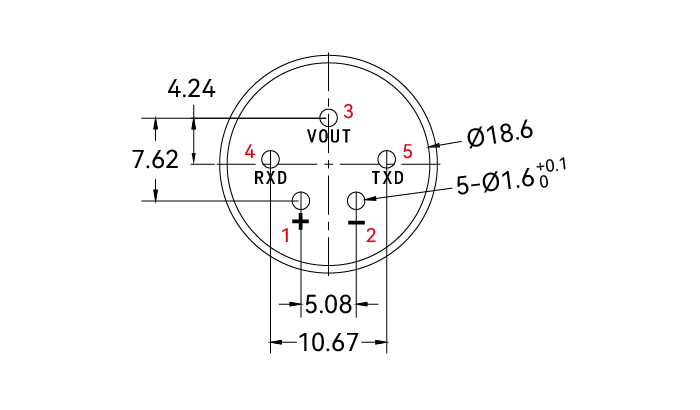

Structure & Dimension Diagram

Detectable Gases
